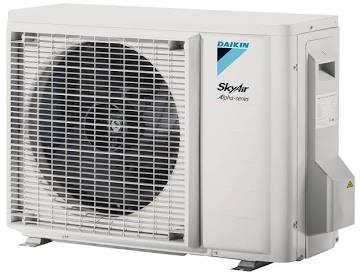

Daikin SkyAir Alpha Series Commercial Outdoor Unit

Experience the next level of comfort and efficiency.

Daikin SkyAir Alpha Series Commercial Outdoor Unit
Model: RZAG100NV1 / RZAG125NV1

Daikin SkyAir Alpha Series Commercial Outdoor Unit

Heavy-duty commercial outdoor unit engineered for demanding applications like retail spaces, server rooms, and technical infrastructure requiring uninterrupted 24/7 climate regulation. Equipped with a refrigerant-cooled circuit board to withstand high ambient temperatures, a single-fan compact housing for tight installations, and full compatibility with R-32 light commercial indoor units.

Technology
R-32 Inverter, Refrigerant-Cooled PCB, EDP Continuous Operation
Capacity
10.00 kW
Energy Rating
Warranty
10 Yrs Compressor 1 Yrs PCB

Technical Specifications

  • Model: RXQ8ARY6/ARY-1 (VRV X - Cooling Only)
  • Power Supply: 3-phase, 380–415 V, 50 Hz
  • Cooling Capacity: 76,400 Btu/h (22.4 kW)
  • Capacity Control: 20 ~ 100%
  • Casing Colour: Ivory white (5Y7.5/1)
  • Compressor Details: Hermetically Sealed Scroll Type (1 compressor)
  • Airflow Rate: 178 m³/min
  • Dimensions (H × W × D): 1,657 × 1,240 × 765 mm
  • Machine Weight: 175 kg
  • Sound Level: 56 dB(A) (Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.5 m; actual operation values are normally somewhat higher as a result of ambient conditions)
  • Operation Range (Cooling): 10 ~ 49 °CDB
  • Refrigerant Type: R410A (Charge: 6.7 kg)
  • Piping Connections:
    • Liquid: ø 12.7 mm
    • Gas: ø 22.2 mm

Note: Specifications are based on cooling conditions with an indoor temperature of 27°CDB, 19°CWB, an outdoor temperature of 35°CDB, an equivalent piping length of 7.5 m, and a level difference of 0.
