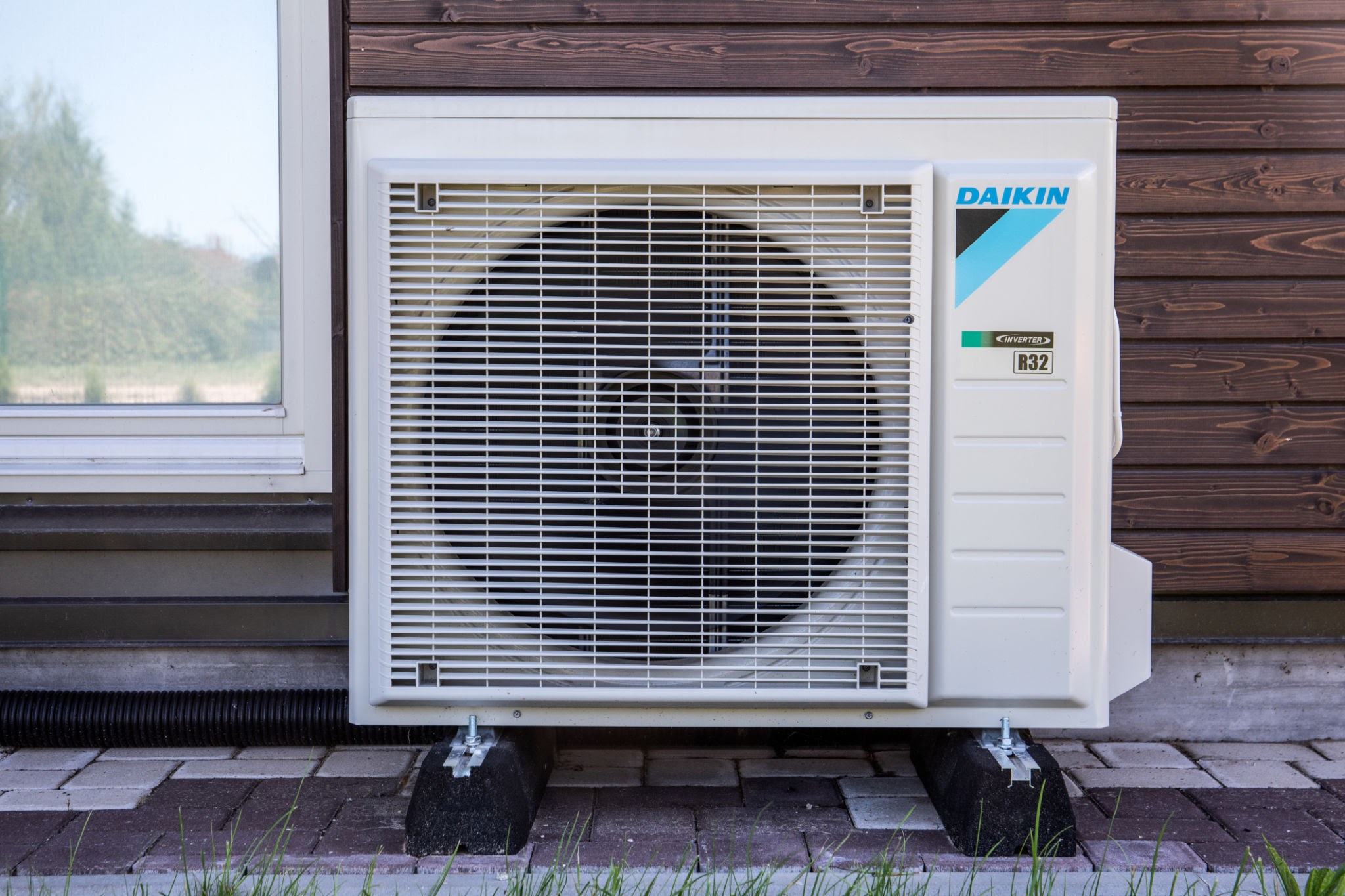

Daikin R-32 Alpha Series Inverter Split Outdoor Unit

Experience the next level of comfort and efficiency.

Daikin R-32 Alpha Series Inverter Split Outdoor Unit
Model: RXM50N / RZA50D

Daikin R-32 Alpha Series Inverter Split Outdoor Unit

Compact and energy-efficient outdoor unit built with Daikin's proprietary inverter compressor technology and low-GWP R-32 refrigerant. Designed for residential and light commercial wall-mounted or ductless systems, offering quiet operation, stable temperature control, and high operational efficiency under fluctuating thermal loads.

Technology
Residential & Light Commercial HVAC
Capacity
5.00 kW
Energy Rating
Warranty
10 Yrs Compressor 1 Yrs PCB

Technical Specifications

  • Model: RXQ6ARY6/ARY-1 (VRV X - Cooling Only)
  • Power Supply: 3-phase, 380–415 V, 50 Hz
  • Cooling Capacity: 54,600 Btu/h (16 kW)
  • Capacity Control: 25 ~ 100%
  • Casing Colour: Ivory white (5Y7.5/1)
  • Compressor Details: Hermetically Sealed Scroll Type (1 compressor)
  • Airflow Rate: 119 m³/min
  • Dimensions (H × W × D): 1,657 × 930 × 765 mm
  • Machine Weight: 165 kg
  • Sound Level: 56 dB(A) (Measured as an anechoic chamber conversion value at a point 1 m in front of the unit at a height of 1.5 m; actual operation values are normally somewhat higher due to ambient conditions)
  • Operation Range (Cooling): 10 ~ 49 °CDB
  • Refrigerant Type: R410A (Charge: 5.9 kg)
  • Piping Connections:
    • Liquid: ø 9.5 mm
    • Gas: ø 19.1 mm

Note: Specifications are based on cooling conditions with an indoor temperature of 27°CDB, 19°CWB, an outdoor temperature of 35°CDB, an equivalent piping length of 7.5 m, and a level difference of 0.
